APC Easy UPS On-Line, 1000VA/900W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD

Rp5.411.250

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

SKU: SRV1KI-E Kategori: , , Tag: ,
Deskripsi

Spesifikasi

Run time for load
900W
3min 12s
Max. Capacity Used
information_stroke

100 %

Main Input Voltage 230 V
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 900 W
Rated power in VA 1000 VA

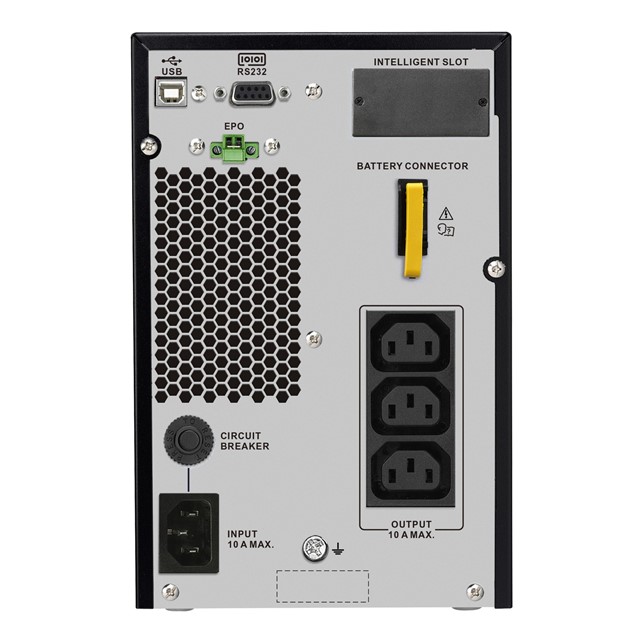

Input Connection Type IEC 60320 C14
output connection type 3 IEC 60320 C13
Cable length 1.5 m
Number of cables 1
Provided equipment 1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
user manual
range of product Easy UPS On-Line
Batteries & Runtime
Battery type Lead-acid battery
Battery voltage 24 V
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Battery life 3…5 year(s)
Replacement battery
APCRBCV203
Battery charger power 30 W rated
Input
Input voltage limits 110…285 V half load
180…285 V full load
Network frequency 40…70 Hz auto sensing
Output
Maximum configurable power in VA 1000 VA
Maximum configurable power in W 900 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 3 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 88 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1

APC_Easy-UPS_SRV1KI-E.pdf
